#4-SM
MODEL SMGSRH

Hydraulic Soil Sampling, Coring and Drilling Machine

All fixtures are mounted on an aluminum square tubular frame and deck. The hydraulic system is powered by a 22 HP 2 Cylinder Air Cooled Kohler Gas Engine that is completely self contained with a 12v electric starter and alternator. Designed to mount in the back of a pickup truck behind the cab or at the back of the box. May also be mounted on various types of utility vehicles. Complete unit is constructed of aluminum.



STANDARD FEATURES INCLUDE:

  • Rotary Head

  • 8gal Oil Reservoir

  • Hydraulic Stabilizer Foot

  • 54” Stroke Mast

  • 4ft Kelly Bar

  • Gauge & Control Panel

  • Folding Mast Assembly

  • 5gal Gas Tank

                                                                                                                                                                                           (Machine Only) Weight 450 lbs

****THIS MACHINE FEATURES DIRECT PUSH ONLY -OR- DIRECT PUSH & ROTARY COMBINATION DESIGNED FOR USE OF AUGERS & SOIL TUBES / UP TO 10” DIA****

MACHINE DIMENSIONS

OVERALL BASE – WIDTH 24” / LENGTH 48” / HEIGHT 40” (OPERATING) 102”

EQUIPMENT SPECIFICATIONS

ROTARY HEAD:

  • 0 - 60 RPM (ADJUSTABLE) 400 FT LBS TORQUE (4,800 IN LBS)

MASTER CYLINDER:

  • 3,300 LBS DOWN FORCE @ .51 FT PER SECOND

  • 2,250 LBS PULL FORCE @ .79 FT PER SECOND


****Machine is designed to take deep samples in many soils and most frozen ground conditions. Total Depths and Diameters will vary with soil conditions..****

Kelly Bar System Extensions are used for getting samples deeper than 4 feet



MACHINE PRICING
$ 19,883.00
(NOT INCLUDING VEHICLE)

MACHINE OPTIONS

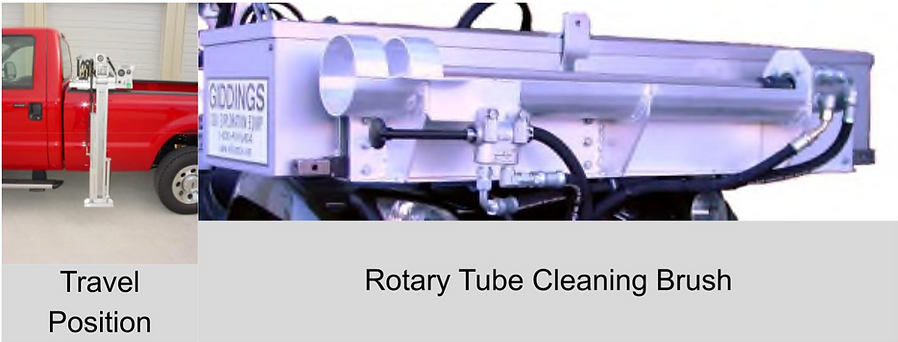

  • #MO-204 Hydraulic Rotary Tube Cleaning Brush.... $ 861.25

  • #MO-216 Adapter Pin Tool/Hammer ........................... $ 41.05

  • #MO-218 Vise Grip Chain Wrench .............................. $ 69.18

  • #MO-220 Hand Tool Kit.............................................. $ 424.19

  • #MO-222 Composite Sample Collection Box Assembly$ 511.99
