#35-SCS

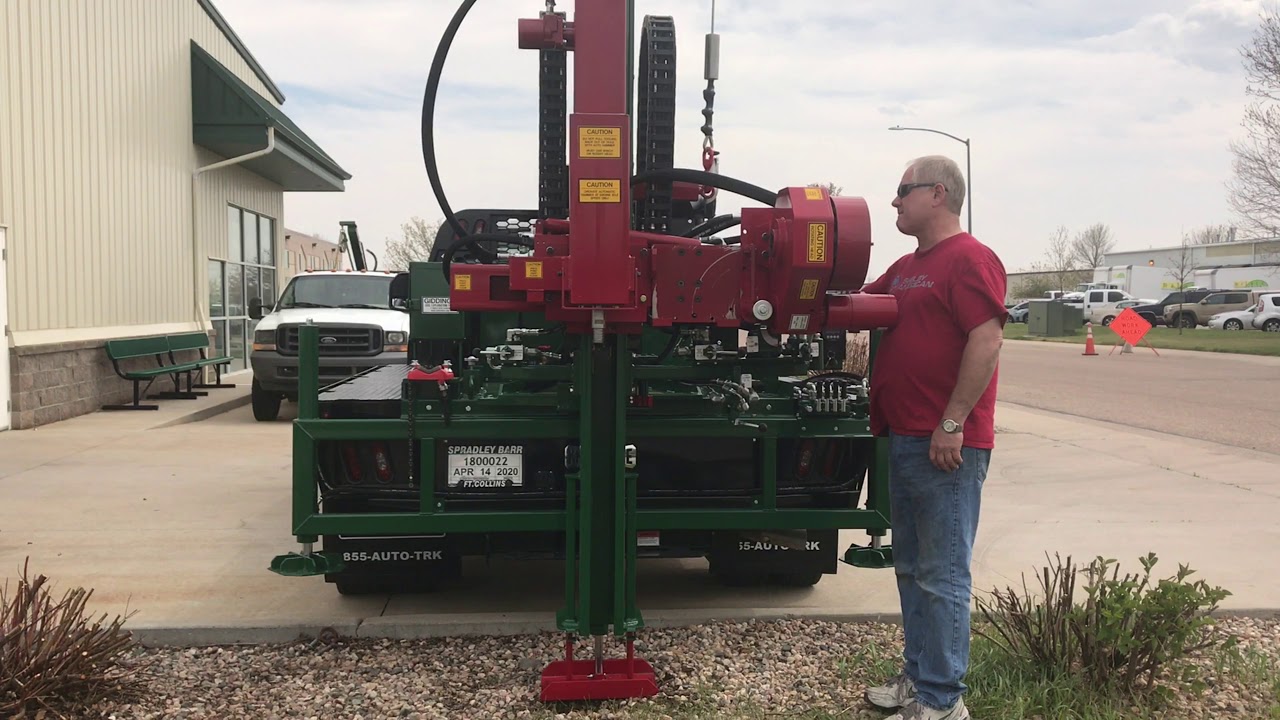

MODEL XHDGSRPS

Hydraulic Soil Sampling, Coring and Drilling Machine

All fixtures are secured on a 5’ x 8’ (152 cm x 244 cm) Steel base plate designed to mount on a F-450 or larger truck , w/ minimum 9ft flat bed. This model is powered with a 56HP, Turbo-Charged, 3cyl, Water-Cooled, Diesel Engine Tier 4 Final Stage III B equipped with a 12 volt starter and alternator. Complete machine constructed from STEEL



STANDARD FEATURES INCLUDE:

  • XHD 2 Speed Rotary Head

  • Pipe Vise

  • 4’ XHD / 2”sq Kelly Bar

  • Hydraulic Swinging Mast

  • 4 Way Leveling System

  • Hydraulic Oil Cooler

  • 60” Stroke Mast (Low Clearance) Optional Longer Stroke Masts Available

  • 35gal Oil Reservoir

  • Hydraulic Mast In & Out

  • Machine Anchoring System

  • Reclining Tail Gate Mount

  • Enclosed Drill Tool Carrier

  • Rear Throttle Control

                                                                                                                                                                        (Machine Only) Weight 4,000 lbs.

****THIS MACHINE FEATURES DIRECT PUSH ONLY -OR- DIRECT PUSH & ROTARY COMBINATION DESIGNED FOR THE USE OF ALL TYPES OF AUGERS, SOIL TUBES, ETC. / UP TO 18”****

EQUIPMENT SPECIFICATIONS

ROTARY HEAD (2 Speed)

LOW SPEED / HIGH TORQUE SETTING

  • 0 - 75 RPM (ADJUSTABLE)

  •  2,100 FT LBS TORQUE (26,400 IN LBS)

HIGH SPEED / LOW TORQUE SETTING

  • 0-150 RPM (ADJUSTABLE)

  • 1,050 FT LBS TORQUE (13,200 IN LBS)

MASTER CYLINDER

  • 24,053 LBS DOWN FORCE @ 0 - 1.1 FT PER SECOND (ADJUSTABLE SPEED CONTROL)

  • 19,635 LBS PULL FORCE @ 0 - 1.72 FT PER SECOND (ADJUSTABLE SPEED CONTROL)

APPROXIMATE CAPABILITIES UNDER NORMAL CONDITIONS

When Using Thin Walled Soil Sampling Tubes

Undisturbed Soil Cores from 1 1/4” – 4 1/2” DIA To Various Depths Depending on Soil Conditions Usually until a Bedrock Layer is Reached

When Using Continuous Type Augers

4” TO 150 FT / 6” TO 120 FT / 8” TO 90 FT

10” TO 75 FT / 12” TO 60 FT



MACHINE PRICING
$ 63,401.00
(NOT INCLUDING VEHICLE)

MACHINE OPTIONS

  • #MO-101 72” Stroke Mast............................................. $ 353.23

  • #MO-103 84” Stroke Mast............................................. $ 706.44

  • #MO-104 Hydraulic Rotary Tube Cleaning Brush........ $ 791.27

  • #MO-108 Rear Hydraulic Stabilizer Jacks.................. $ 1,939.98

  • #MO-113 Rotary Cathead Attachment........................ $ 2,237.81

  • #MO-114 140lb SPT Drop Hammer (ASTM SPEC) .... $ 876.63

  • #MO-115 Drop Hammer Carrier.................................... $ 218.76

  • #MO-116 Adapter Pin Tool/Hammer ............................... $ 41.05

  • #MO-118 Vise Grip Chain Wrench .................................. $ 69.18

  • #MO-120 Hand Tool Kit.................................................. $ 424.19

  • #MO-124 Deck Mount Auger Rack Auger Rack ........... $ 486.33

  • #MO-146 Under Deck Hollow Stem Auger Rack ....... $ 1,176.25

  • #MO-148 Under Deck Tool/Storage Box ........................ $ 460.10

  • #MO-150 Side Feed Water Swivel / AW......................... $ 737.23

  • #MO-151 Side Feed Water Swivel / AWJ....................... $ 761.76

  • #MO-152 Low Pressure Water Pump System............ $ 1,606.93

  • #MO-153 High Pressure Water Washing System....... $ 2,143.32

  • #MO-154 25gal Water Tank.......................................... $ 755.15

  • #MO-155 50gal Water Tank....................................... $ 1,121.19

  • #MO-156 75gal Water Tank....................................... $ 1,487.22

  • #MO-158 150gal Water Tank...................................... $ 2,877.06

(Water Tanks Are Steel w/ Epoxy Interior Coating)

  • #MO-157 35ft Low Pressure Retractable Hose Reel ..... $ 468.07

  • #MO-159 35ft High Pressure Retractable Hose Reel..... $ 563.68

  • #MO-160 Hydraulic Tool Pulling Winch .................... $ 4,928.68

  • #MO-170 140lb Automatic SPT Drop Hammer ....... $ 7,467.13

  • #MO-171 170lb Automatic SPT Drop Hammer........ $ 7,573,38

(Automatic SPT Drop Hammers Meet ASTM Specifications)

  • #MO-180 #35 Rotary Head to 1 1/4” Kelly Bar Adapter$ 720.04

****ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE****

No online order purchase form available. All orders must be placed via email or phone.
